VertiCal Support Tools
VertiCal Base Boards with Pins
- LFVBBM34U1A
-
- NXP Lead Free MPC5534 324 pin 1.0 mm pitch VertiCal Base Board with Pins

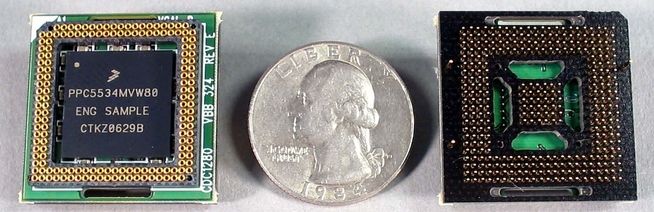

- Lead Free VertiCal Base Board for use with a target system designed for the MPC5534 1.0 mm pitch 324-pin BGA MCU. The LFVBBM34U1A consists of a 1.0 mm pitch 156-pin VertiCal calibration interface and a CSP5534 0.5 mm pitch 496-pin MCU on the primary side and a 1.0 mm pitch 324-pin BGA pin array on the secondary side. Designed to work with a user target system having a 324-pin receiver base installed in place of the MPC5534 MCU.
- Documentation
2D Visual Representation (PDF)
3D Visual Representation (PDF) - Product Information
-
Header 1 Header 2 Pb Free Yes RoHS Complient Yes - Back to all VertiCal Base Boards with Pins
