- LFTHNYHT
-
- NXP Lead Free 0.5 100-pin QFP Target Interface Adapter and Surface Mount Socket Set

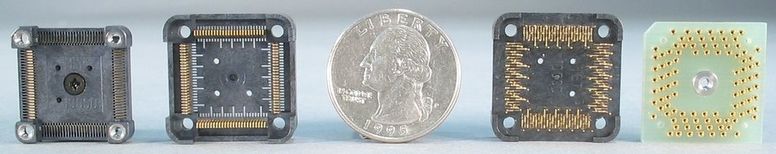

- Lead Free Surface mount adapter system which allows the use of either an in-circuit target cable or an 100-pin packaged MCU. Includes a Tokyo Eletech NQPACK100SD target adapter (which is installed on the target board), an HQPACK100SD device adapter, a YQPACK100SD emulator cable adapter, and an M68TQS100SDF1 TQSocket without guide pins.
- Documentation: Option A
2D Visual Representation (PDF)
3D Visual Representation (PDF) - Documentation: Option B
2D Visual Representation (PDF)
3D Visual Representation (PDF) - Product Information
-
Header 1 Header 2 Pb Free Yes RoHS Complient Yes - Back to all Surface Mount Socket Assemblies
