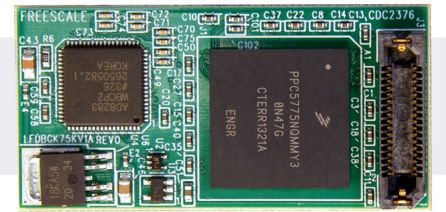

LFDBGK75KV1A

NXP MPC5775K 0.8 mm 356-pin BGA Aurora interface adapter

Lead Free PGA adapter on which an MPC5775K 356-pin 0.8 mm pitch BGA emulation device is mounted, allowing insertion into a 356-pin 0.8 mm BGA socket connection. Includes Samtec Aurora interface. Works with LFBGARBV1AO.

Documentation

2D Visual Representation - Page 1 (PDF)
2D Visual Representation - Page 2 (PDF)
3D Visual Representation (PDF)
Mechanical Drawing (STP)

Product Information

Header 1	Header 2
Pb Free	Yes
RoHS Complient	Yes
