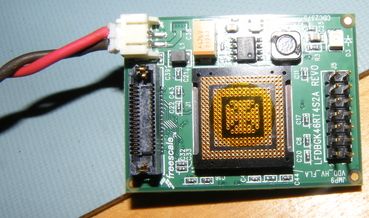

LFDBGK46RT4S2A

NXP MPC5746R 0.8 mm 252-pin BGA to PGA Aurora interface adapter

Lead Free PGA adapter on which an MPC5746R 292-pin 1.0 mm pitch BGA emulation device is mounted, allowing insertion into a 252-pin 0.8 mm BGA socket connection. Includes Samtec Aurora interface. Works with LFBGARBS2AO.

Documentation

2D Visual Representation - Page 1 (PDF)
2D Visual Representation - Page 2 (PDF)
3D Visual Representation (PDF)
Mechanical Drawing (STP)

Product Information

Header 1	Header 2
Pb Free	Yes
RoHS Complient	Yes
