LFBGARBZAO

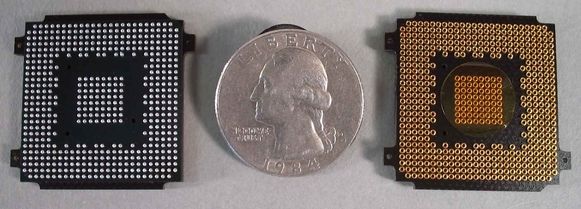

NXP Lead Free 516 pin 1.0 mm pitch BGA Base with receivers only

Lead free surface mount adapter which allows either an in-circuit emulator or a socket adapter, requiring female receivers, to be connected to any 516-pin 1.0 mm pitch BGA target system.

Documentation

2D Visual Representation (PDF)
3D Visual Representation (PDF)
Mechanical Drawing (STP)

Product Information

Header 1	Header 2
Pb Free	Yes
RoHS Complient	Yes
