LFBGAINTPWA

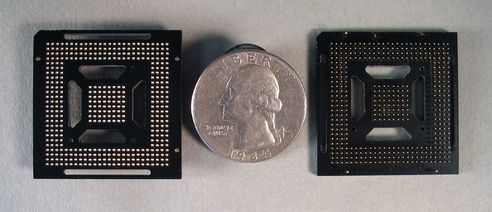

NXP Lead Free 416 pin 1.0 mm pitch BGA to PGA adapter

Lead Free PGA adapter or "interposer", which will allow any 416 pin 1.0 mm pitch BGA to be mounted and inserted into an LFBGARBWAO BGA base with receivers. Can be used with SnPB or Pb-Free solder.

Documentation

2D Visual Representation (PDF)
3D Visual Representation (PDF)
Data Sheet (PDF)

Product Information

Header 1	Header 2
Pb Free	Yes
RoHS Complient	Yes
