LFBGADAU1A

NXP Lead Free 324 pin 1.0 mm pitch BGA /LGA ZIF socket adapter set with receivers

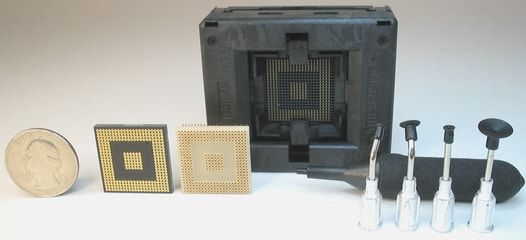

Lead Free BGA socket adapter set which allows any 324-pin 1.0 mm pitch BGA or LGA surface mount device to be installed into user's target system. Consists of an Enplas 324 pin ZIF socket, an LFBGAMU1A PGA mini grid socket, and an LFBGARBU1A BGA base with receivers.

Documentation

2D Visual Representation
3D Visual Representation
Data Sheet

Product Information

Header 1	Header 2
Pb Free	Yes
RoHS Complient	Yes
