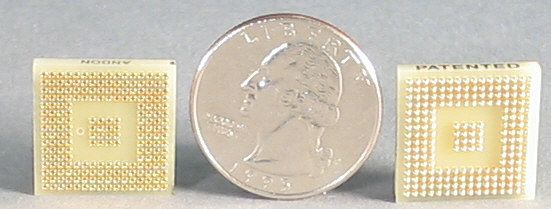

LFBGADAQA

NXP Lead Free 208 pin 1.0 mm pitch BGA /LGA ZIF socket adapter set with receivers

Lead Free BGA socket adapter set which allows any 208-pin 1.0 mm pitch BGA or LGA surface mount device to be installed into user's target system. Consists of an Enplas 208 pin Zero Insertion (ZIF) Socket, an LFBGAMQA PGA mini grid socket adapter, and an LFBGARBQA BGA base with receivers.

Documentation

2D Visual Representation (PDF)
3D Visual Representation (PDF)
Data Sheet (PDF)

Product Information

Header 1	Header 2
Pb Free	Yes
RoHS Complient	Yes
